Disinfectant & Sanitization Solution - Effective, Efficient And Safe
SMHS disinfectant & sanitization solution leverages short-wavelength ultraviolet technology, as a disinfection measure, to help reduce the transmission of COVID-19.
UV disinfection solution is based on a chemical free process & leaves no residue behind, needs no storage or handling of toxic or corrosive chemicals. The solution is fully automatic & requires no human intervention, thus eliminating the possibility human error in the disinfection process.

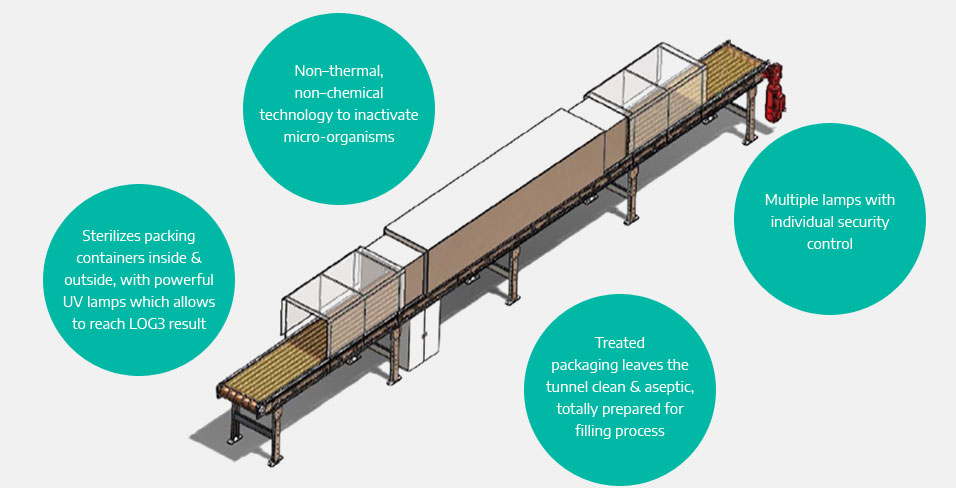

UV Tunnel
A non–thermal, non–chemical technology-based tunnels to disinfect & inactivate the infection.
Configuration
| Model | UC-LPAM |
|---|---|
| Target UV Dose @EOL | 26,000 uW-sec/cm2 |
| Maximum conveyor speed | 0.5m's |
| UVC Emitters | 10 |
| Target Average Irradiance | 4750 uW/cm2 |
| UV tunnel active width | 1.0m |
| UV tunnel active height | 0.5 m |
| UV tunnel active length | 3.5m - 4.5m |
| Model | UC-LPAM |
|---|---|
| Voltage | 220-440V / 50-60Hz (Single Phase) |
| Maximum power consumption | 3.75kW |
| Control Panel Rating | IP54 |
| Control Panel MOC | M.S (Optionally SS304) |
| Max lamp cable length (mtrs) | 4.5 |

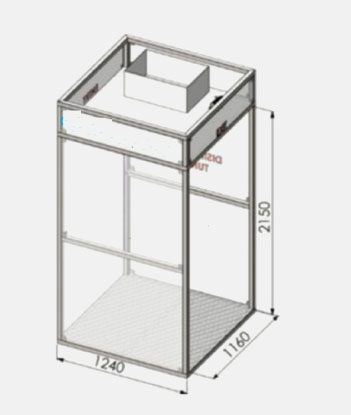

Fogging chamber
Fogging chamber, a special chamber designed as a walk through enclosure for personnel decontamination. A portable solution equipped with fog mist sprayer.
| Specifications | |
|---|---|
| Body of Tunnel (structure) | Metal / 1” MS pipe / Fiber Reinforced Plastic Sheet. |
| Dimensions of Tunnel | 4 ft. length * 4 ft. width* 7.6 ft. height |
| No. of Spray & Nozzles | 5 Nos. (5‐way spraying) |
| Nozzle type | With NRV (non‐return valve) spray/ fog mist spray |
| Operating | Foot Switch with 5 sec preset timer instead of manual |
| Capacity of Nozzles | Spray consumption 25 to 30 ml per person/td> |
| Liquid tank | 50 LTR |
| Motor & pump | 0.5 HP / 220 v/ Ac / 50Hz |
| Total Weight of Tunnel with accessories | Approx. 50 kgs. |
| Approx time | 5-10 seconds to cross chamber |
| Testing | Medium Water Only |
