Technology is playing a critical role in containing the spread of the novel Coronavirus by aiming to reduce human contact with the patient. To further support this cause, SMHS has developed “Contact Tracing”, an intelligent solution and critical component of comprehensive strategies to control the contagion.
The solution aims to break the chain of human-to-human transmission by identifying people exposed to confirmed cases, and helping authorities trace the path of infection. Contact Tracing ensures accuracy and effectiveness while identifying possible close contacts when a COVID positive case is identified.
Leveraging digital infrastructure and technologies like Bluetooth Low Energy (BLE) and IoT, the solution generates visual & vibration alert and creates a log of all individuals who come in close proximity (1 to 2 meters) within the premises.
The solution facilitates safe distancing and contact tracing through wearable-to-wearable communication. Embedded with BLE beacons, wearables log events when in close proximity. Each wearable can store up to 9,000 contact tracing details.The captured data is transmitted to the cloud using IoT gateways installed at specific positions. The solution is not GPS dependent thus maintains user privacy.We are proud to have partnered with Ascent solutions, an IoT solution company focused on providing end-to-end solutions for track & trace needs. We have come together to support business operations and services, streamlining their contact-tracing process.

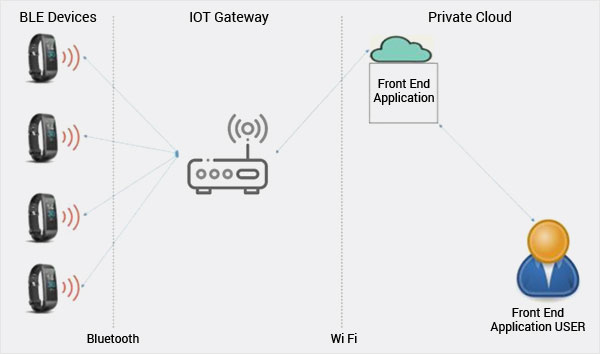

Process Flow
Specifications Partnered with Ascent Solutions Pte Ltd
Product Parameters
| Body Material | ABS + PC |
|---|---|
| Band Material | TPU |
| Weight (grams) | 15g |
| Screen Size (inches) | 0.96" IPS Color screen Screen |
| Resolution | 90*160dpi |
| Touch | One Button Touch |
| Built-in Polymer Battery Capacity | 90mAh |
| Battery Life | 96 hours |
Hardware Specs
| G-sensor_IC | Support |
|---|---|
| BT Version | BLE 5.0 |
| BT Range | up t0 10 m |
| Date Storage | 9000 records |
| Water Resistance | IP67 |
| Charging Type | USB Charge |
Partner with Ascent Solutions Pte Ltd, Singapore
